These cables are specifically approved for power, control, lighting and signal circuits, in manufacturing, industrial and commercial installations.
May be used in wet or dry locations, where exposed or concealed, installed in cable trays, raceways, duct, and open air, aerially or directly buried.
In hazardous (classified) locations Class I, Division 2, as permitted by NEC®.
Standards:
UL 1569 (Metal-Clad Cables.) UL 1277 (Electrical Power and Control Tray Cables with Optional Optical-Fiber Members.) UL 83 (Thermoplastic-Insulated Wires and Cables.) ICEA S-73-532/NEMA WC 57 (Control, Thermocouple Extension, and Instrumentation Cables.) ICEA S-95-658/NEMA WC 70 (Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy.) ASTM B8 (Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft.) ASTM B787 (19 Wire Combination Unilay-Stranded Copper Conductors for Subsequent Insulation.)
Conductor:
Soft annealed uncoated copper compressed Class B or C stranding or unilaycompressed (19 wires) per ASTM B8, or combination unilay per ASTM B787.

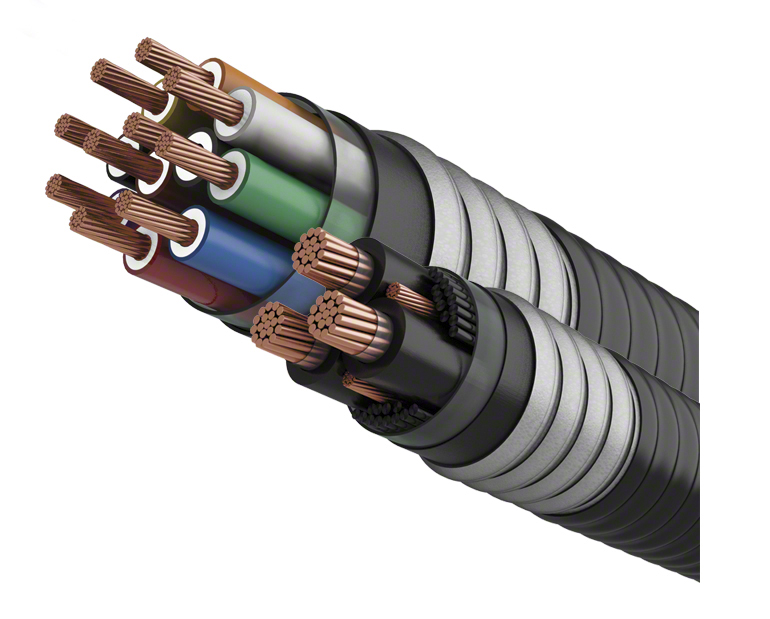

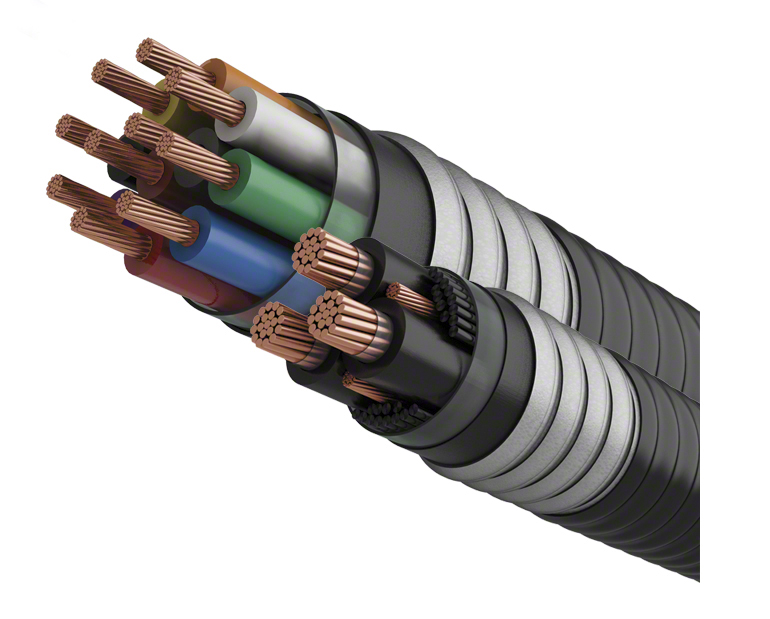

MC, XHHW-2 XLPE Insulated, 600 V, Copper

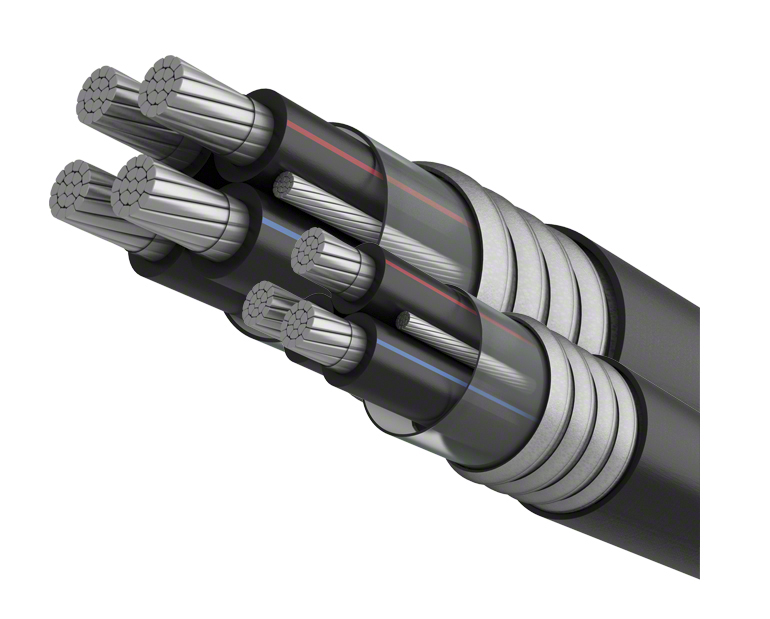

MC, XHHW-2 Al-8000, XLPE Insulated, 600 V, Aluminum

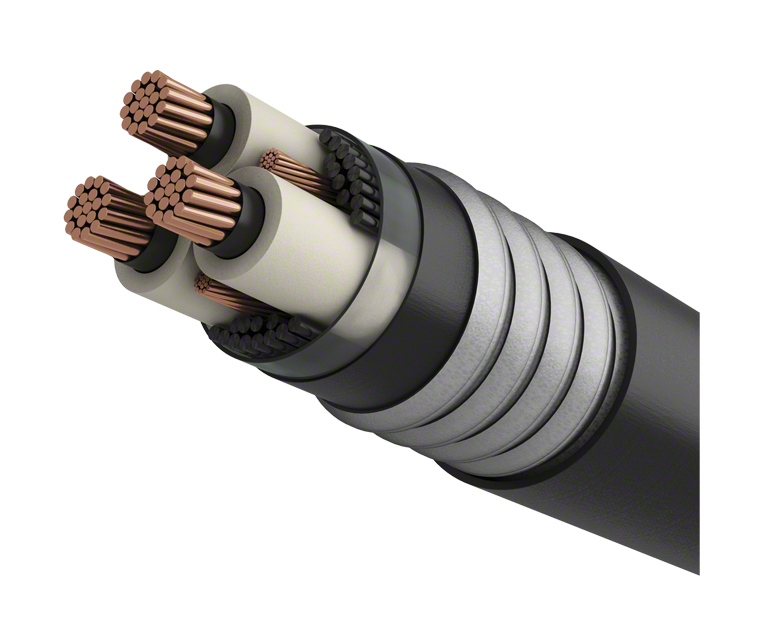

MC or MV-90 XLPE Insulated, 2.4 kV, Non-shielded, Copper

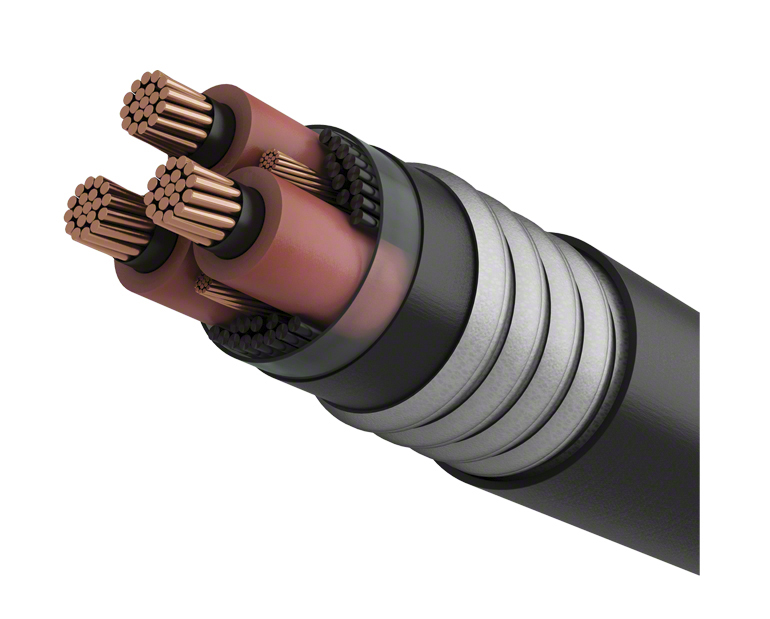

MC or MV-90 EPR Insulated, 2.4 kV, Non-shielded, Copper

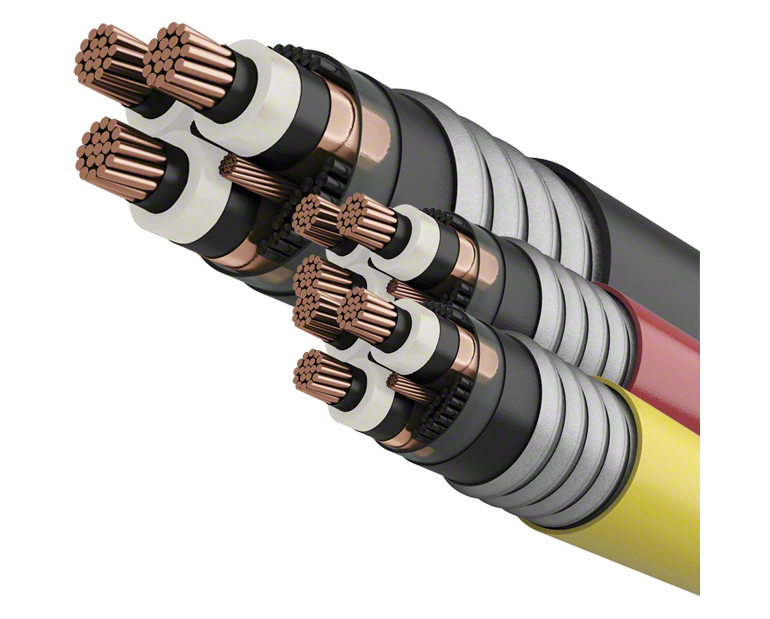

MC or MV-90 XLPE Insulated, 5 kV – 35 kV, Shielded, Copper
MC or MV-105 EPR Insulated, 5 kV – 35 kV, Shielded, Copper
